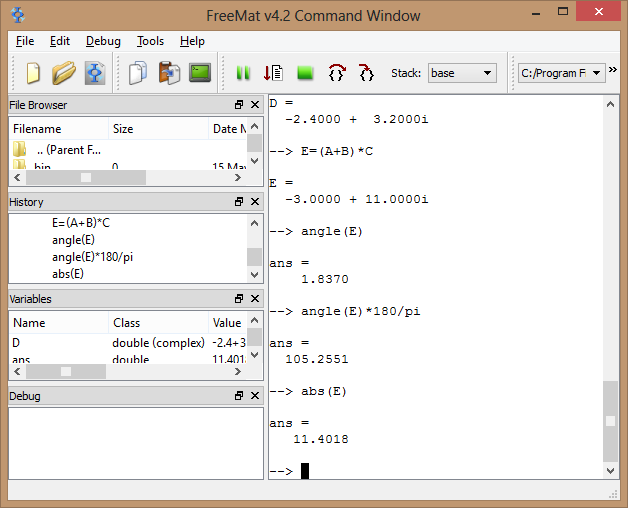

FreeMat Complex numbers

In this lab we learned how to use freemat with complex numbers

Exercise 1

 Exercise 1

Exercise 2

Assignment

MOSFET

In this lab we use a MOSFET to control the voltage across a motor.

We first connect the motor to the MOSFET and a potentiometer.

We observe that the motor does not begin to rotate until around 3.9 V

As we adjust the pot we notice that the motor reacts to the change in voltage that is occurring. It is fairly difficult to make the motor shaft rotate at approximately once per second.

PWM Chopper MOSFET

We replace the pot with a square wave generator set at 10 Khz. We use the oscilloscope to display the waveform of the motor voltage.

Practice RLC Circuit

Oscilloscope 101

In this lab we practiced using the oscilloscope which will help us measure the voltage and time of a signal based on the wave shape. This instrument will help in future labs.

We first had to get a sign wave to appear on our oscilloscope with a frequency of 5 kHz and amplitude of 5 V. We measured the period to be 210 us, peak to peak amplitude of 10 V, zero to peak of 5 V, and RMS value of 3.53

We then verified these values with the DMM and got VDC = 0 and VAC = 3.36

We then included a DC offset

adding a 2.5 V offset we attained the values    VDC = 2.5 V and VAC = 1.17 V

We then displayed a square function

VDC = 0 V and VAC = 2.6 V

we calculate VAC = sqrt(2.5^2 * 4 * 50ms/ 4 * 50 ms) = 2.5 V

Mystery Signal: After establishing a steady wave function we measured DC = .03V frequency = 133k Hz and peak to peak amp to be .13 V

Capacitor Charging / Discharging

In this lab we observed the relations of charging and discharging a capacitor. The relation we see from our equations is that it will essentially never fully charge or discharge as it exponentially approaches either value. With the given knowledge of capacitors we are to construct a circuit from which we determine the thevin values.

We utilize a 9 V DC power supply and determine that C = 62uF from w = CV^2 / 2. There is a charging interval of about 20s with a resulting stored energy of 2.5 mJ and then discharged in 2 s.

Assuming an ideal capacitance we estimate charging resistance to be 64.5 k ohms

Using V = IR we determine the peak current value to be 0.14 mA and P = IV to determine peak power to be 1.26 mW.

The discharging resistance is estimated to be 6.45 k ohms and the peak discharge current and power are 1.4 mA and 12.6 mW respectively.

We set the power sipply to be 6 V         V measured = 5.707 V

VFinal = Vs (RLeak)/(Rc + RLeak)         RLeak = 1.256 M ohms

Graph of charging capacitor

 charging took about 20 seconds

Graph of discharging capacito

discharging took about 2 seconds

Questions:

1. Thevenin Values During Charging

RTH = 61.4 k ohms

VTH = 5.707 V

2. Thevenin Values During Disharging

RTH = 6.42 k ohms

VTH = 5.707 V

3. 0.3679 * VF = 3.607 V  this occurs around 4s according to our charging waveform

t=RC    4 = R * 62 uF   R = 64.5 K ohms

Practical Question:

1. E = V^2 C/2 = 160 mJ = 15kV^2  C / 2       C = 1.4 F

2. C||C + C||C + C||C + C||C = 1.4 F

C = .7

OP Amps II

In this lab we further explore operational amplifiers by observing the effects of changing the input and feedback resistors. We began the lab with the first set of values being:

Resistor	Nominal Value	Measured Value
R1	10K Ω	9.79k Ω
R2	100k Ω	95.2k Ω

The current leaving the op-amp is 0.1 mA

After setting up our circuit we recorded the values  for various V in values.

V in Desired	V in actual	V out measured	V RF measured	I op Calculated
0.25 V	0.251 V	2.49 V	2.50 V	0.0263 mA
0.5 V	0.433 V	4.25 V	4.26 V	0.0447 mA
1.0 V	1.192 V	10.76 V	10.79 V	0.113 mA

ICC = 1.01 mA   IEE = -0.91 mA

We see that KCL for the op amp is true
Irail = IEE + ICC = 0.1 mA
Power calculated
PIcc = 12V *1.01 mA = 12.12 mW
PIEE = 12V * (-.91 mA) = -10.92 mW

We then add a 1k resistor to our circuit and remeasure the values when V in = 1.0 V

V in Desired	V out measured	V RF measured	I op calculated	I cc measured	I EE measured
0.93 V	9.39 V	8.99 V	0.094 mA	0.93 mA	-1.04 mA

KCL still holds  Icc + IEE = 0.11 mA
Power calculated

PIcc = 12V *0.93 mA = 11.16 mW
PIEE = 12V * (-1.04 mA) = -12.48 mW


We then reproduce the lab by replacing Rf = 50k ohms which we set with a resistor box.

V in Desired	V out measured	V Rf measured	I op calculated	I cc measured	I EE measured
1.08 V	5.44 V	5.47 V	0.109 mA	0.9 mA	-1.01 mA

The measurements still behave as expected. KCL holds.
